ADVANTAGES OF HYBRID -Servo and Hydraulic
Lower energy consumption – The servo motor only operates when hydraulic power is required, which can significantly reduce electricity usage compared to a conventional hydraulic press brake.
Improved accuracy and repeatability – Servo control provides more precise ram positioning, resulting in consistent bend angles and improved part quality.
Higher productivity – Faster approach, bending, and return speeds help reduce cycle times and increase overall throughput.
Quieter operation – Because the hydraulic pump is demand-driven rather than running continuously, the machine operates with much lower noise levels.
Reduced maintenance – Lower oil temperatures and reduced hydraulic system wear help extend the life of seals, hydraulic oil, and other components, potentially lowering maintenance costs.
Lower operating costs – The combination of energy savings, reduced maintenance, and increased productivity can provide a lower total cost of ownership over the life of the machine.
Environmentally friendly – Reduced power consumption and lower hydraulic oil requirements contribute to a smaller environmental footprint.
With an easy to use control unit, stable body structure, perfect design, low operating cost, different tool usage options, maximum safety standards, Durma press brakes are the best in the world in their segment. Durma press brakes are fast, efficient and modern. Durma press brakes are equipped with: Aluminum backgauge systems, front sheet supports, precise Hydraulic system, Durma licensed upper table sliding system, Euro type punch holders, high speed and stroke Y1-Y2 bending axis and CE level safety standards.
Meet your production needs cost-effectively with our low-energy consumption AD-Servo series, in response to rising energy costs. Enhance your competitiveness by offering commercial solutions in various sizes and reducing production costs.
Low-energy consumption hydraulics – Energy consumption has a significant effect on Total Cost of Ownership of plant and machinery: even with standard machines, the energy consumption represents 30% of total costs, and with particularly energy-intensive applications, this share is remarkably higher.
- High sensitivity, Stress relieved steel construction body, long life Mono Block Frame
- Automatic calibration and first start up
- DURMA designed and copyrighted guiding system
- Ball Screw and linear guide integrated perfect back gauge system
- Durable, long life and sensitive bending capable special hardened top tools
- Suitable for segmented tools special and fast tool holding system
- Sensitive solutions on long and deep bending
- High accuracy linear scales
- CE safety standards
- Best quality world wide accepted hydraulic and electric components
- Control Unit – SKY 22
- Y1, Y2, X, R – 4 Axis
- Manuel F. AKAS FPSC Front Safety System
- Servo Motor Backgauge – Linear Guided & Ballscrew System (X-R)
- CNC Controlled Motorized Crowning
- European Style Tool Clamping System
- Sliding Front Support Arms (with T-Slot and Stopper)
- World Standards Special Design Hydraulic Block and Valves
- World Standard Electric Equipment
- Control Unit – DA-66S / DA-69S
- F. AKAS LC 5 Front Safety System
- Motorized F. AKAS – 5P FPSC (Safety PLC)
- CE F.AKAS BLVT Light Barrier and Safety Cages (For Tandem Press Brakes)
- Motorized X, R, Z1, Z2 Axis Backgauge System
- Motorized X1, X2, R1, R2, Z1, Z2 Backgauge System
- Delta X-Axis +/- 125 mm stroke
- X-Axis = 1000 mm – Light Barrier Back Protection
- “AP3-AP4 Automatic Sheet Follower System – Motorized
- Elevation Adjustment
(There is a motorized elevation adjusment for 220 tons or more.)” - Durma Laser Angle Measurement (DAM)
- DBEND 3D Bending Simulation Program
- Quick Release Clamping System
- Hydraulic and Pneumatic Tool Clamping Systems
- Parking Area for Support Arms
- Central Lubrication System (Manual / Automatic)
- Oil Cooler / Oil Heater
- Additional Backgauge Finger and Sliding Front Support Arms
- Robot Integration
- Special Packing for Overseas Shipments
The most important feature to achieve perfect bending is the stability and the design of the back gauge, which allows an impeccable and correct product to be produced. The high speed double ballscrew back gauge system movement is also supported with double linear guides, which helps the back gauge achieve long life, greater sensitivity and strengthens against any collisions.
Special designed finger blocks with steps to achieve maximum stability can also be supplied for every kind of bending solution.
Tool Holders and Tools
European Clamping System
European Type
Bottom Tool (4V Die)

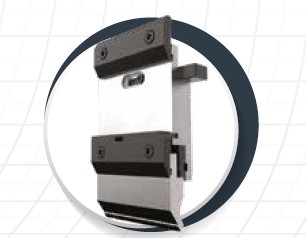

Quick Release Clamping
Durma Hydraulic Holder
Durma Top Tool Holder
Durma Multi
V Bottom Tool
CNC Control Units

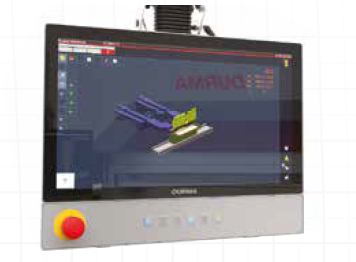

SKY 22 (Standard)
• 21.5 ‘’ TFT color touch screen with USB port and • backup • Automatic bending order • Perfect control of electrical servo systems • Archiving user bendings • 2D/3D color graphics display and multi-simulation • Windows 10 operating system • Tandem applications • Network interface • X1-X2-R1-R2-Z1-Z2 and AP3-AP4 part support system • DURMA laser angle measurement system compatible • 2D / 3D part & tool import • Robot integration compatible
DA-66S(Optional)
• 2D graphical touch screen programming mode • 3D visualisation in simulation and production • 24" high resolution colour TFT • Full Windows application suite • Delem modusys compatibility • USB, peripheral interfacing • User specific application support within the controllers multitasking environment • Sensor bending & correction
DA-69S(Optional)
• 24'' TFT screen, 1920 x3080 pixels, 32 bit colour, • Real-time Linux embedded OS • Full touch screen control • Storage capacity 2 GB • Network connectivity • Delem modusys compitable • Tandem operation • 2D/3D real-scale product programming and visualision • Automatic bending sequence calculation for 2D/3D • DXF part & tool import support
Durma Angle Measurement System
Automatic AP3 - AP4 Sheet Follower
Robotic System Applications
