ACCURL & DURMA Distributor · Established 1970

CNC Press brake Machines

Discover our range of high-performance ACCURL CNC press brake machines, designed for accurate, efficient and reliable sheet metal bending across a wide range of manufacturing applications.

Introduction

Press brake Standard Choice for Precision Bending

Press brake bends sheet and plate to exact angles by clamping the material between a punch and a matching die. Computer control sets the depth, angle and back gauge automatically, so the same part comes out right on the first piece and every one after it.

We supply the full ACCURL and DURMA press brake range, from entry-level Genius Pro machines through to double-servo EuroMaster and robotic tandem systems. Every machine is backed by in-house applications engineering, installation, operator training and ongoing service.

A CNC Press brake utilises hydraulic or electric force. Conventional press brake require more expertise and skill, and more operators to do the work. With CNC press brake, you benefit from the same quality while reducing labour requirements and improving productivity.

At a glance

CNC Press brake bending at a glance

Materials

Mild steel: Every tonnage rating is quoted against it, typically 450 N/mm². Predictable springback, standard tooling.
Stainless steel: Needs around 1.5 times the tonnage of mild steel and springs back further. Polished tooling avoids galling marks.
Aluminium: Roughly half the tonnage, but cracks on tight radii. Bend across the grain and allow a generous inside radius.
Brass and copper: Very low force required, but they mark easily. Protective film or polished tooling on visible parts.

Tonnage

Entry level through to high tonnage tandem systems.
Force depends on four things: material thickness, bend length, tensile strength and V die opening.
Air bending usually runs a V die opening of around eight times material thickness.
Bottoming needs more force than air bending; coining needs several times more again.

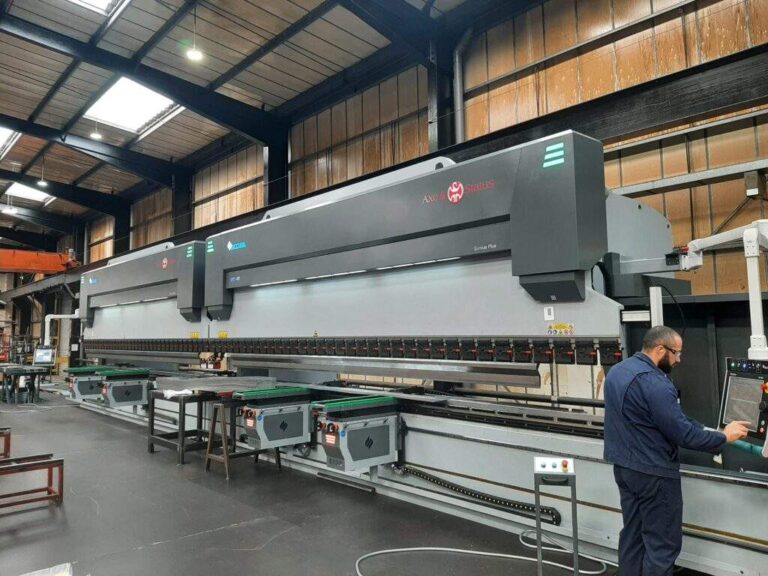

Tandem systems pair two machines under one control, running long parts together or short parts independently.

Controls

Delem and Sky CNC, configurable up to 10 axes.

Delem: European standard, with graphical programming and automatic bend sequencing. Most experienced operators already know it.
Sky CNC: Similar core functions at lower cost, suited to a stable range of parts.
Y1 and Y2: Control each end of the beam independently, keeping the angle consistent along the bend.
X and R: Set flange length and back gauge height, so the gauge clears existing flanges.
Z1 and Z2: Move the gauge fingers laterally to support asymmetric and tapered parts.
Crowning: Compensates for bed and beam deflection across long bends.

Support

Installation: Commissioned by our own engineers, covering levelling, calibration and a first article check on your material.
Operator training: Delivered on your machine with your parts. Most operators are productive within a day.
Service: UK-based engineers, with retraining available if your team changes.

The range

Our ACCURL Press brake Range

If you’re looking to invest in a high-quality press brake machine, we invite you to explore our full range. With various designs and specifications available. You can find the right machine to match your exact production requirements.

Whether you’re upgrading your existing workshop or setting up a new facility, CNC press brake machines offer significant advantages, from boosting productivity and improving precision to reducing operational costs.

Selecting the right machine can significantly enhance your manufacturing process, helping you achieve greater efficiency and consistency. Four machine families covering everything from thin sheet to thick plate and 12-metre tube. Choose a machine to see full specification.

Entry level

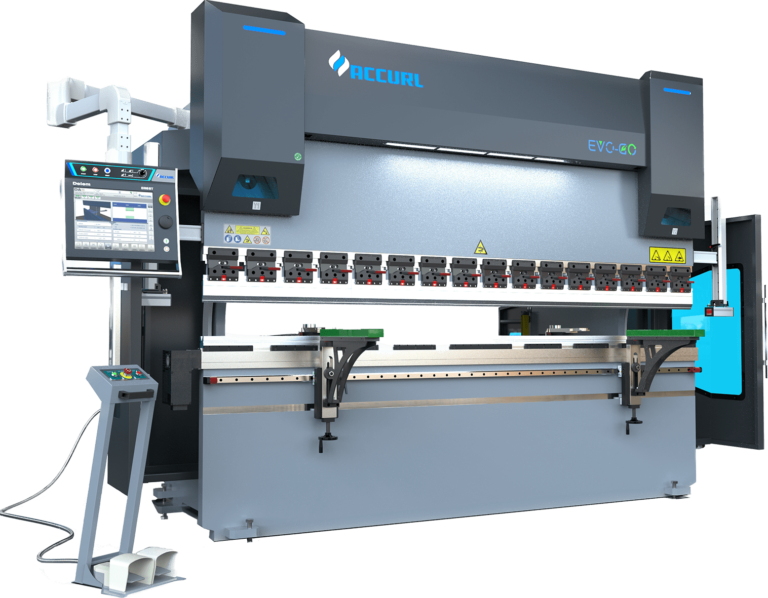

ACCURL Genius Pro

A precise, dependable first CNC press brake for shops moving into computer-controlled bending.

6 to 8 axis

ACCURL Genius Plus & Tandem

High-performance bending as a single machine or a tandem pair for long, heavy parts.

Servo-electric

ACCURL eB ICON

Fast, quiet, energy-efficient bending with excellent repeatability.

Top level

ACCURL EuroMaster Double Servo

Double-servo precision for the most demanding, high-accuracy work.

Hydraulic

DURMA AD-S Series

Proven, heavy-duty hydraulic press brake for reliable everyday production.

Hybrid servo

DURMA AD-Servo

Hydraulic power paired with servo efficiency and control.

Automation

ACCURL Robotic Cells

Robot-tended bending for lights-out, high-volume production.

Controls

Delem & Sky Controls

Choose the control platform to match your operators and your parts.

How it works

How CNC Press brake bending works

A press brake forms metal by driving a punch down onto sheet held over a die. CNC control sets the punch depth, which sets the bend angle, while the back gauge positions the sheet for each bend in the sequence.

Because the machine holds those positions to a fraction of a millimetre, complex multi-bend parts repeat exactly from the first piece to the last. That precision is why CNC machines have replaced conventional press brake across most of the industry.

Servo vs hydraulic in brief

Hydraulic press brake deliver high force and are the proven choice for heavy plate. Servo-electric machines use less energy, run quieter and faster, and hold angle accuracy exceptionally well. Hybrid machines pair hydraulic power with servo control.

Bend methods

Air bending

The punch presses the sheet part-way into the die without touching bottom. Versatile, lower tonnage.

Bottoming

The punch presses the sheet onto the die faces for greater accuracy and consistency.

Coining

The sheet is fully compressed into the die, giving the strongest and most repeatable bend.

Key features

Key Features of Our Press brake

Precise, repeatable bends

Accurate bend angles and dimensions on the first part and every part after it, ideal for complex components and volume production alike.

Fast setup, low running costs.

Simple programmable operation and a durable, low-maintenance design that keeps setup times short and energy use low.

Remote diagnostics & support

Remote diagnostics and UK-based engineers keep your machine productive and downtime low.

Types

Types of Press brake we Supply

Hydraulic press brake Proven, heavy-duty bending force for thick plate and dependable everyday production. Our DURMA AD-S Series.

Servo-electric press brake Faster, quieter and more energy-efficient, with excellent angle accuracy and repeatability. Our ACCURL eB ICON.

Hybrid press brake Hydraulic power paired with servo control and efficiency, giving strong force with lower running costs. Our DURMA AD-Servo.

Tandem press brake Two machines under one control, running long or heavy parts together and short parts independently. Our ACCURL Genius Plus and Tandem.

Robotic press brake cells Robot-tended bending for high-volume, lights-out production with consistent results across long runs. Our ACCURL Robotic Cells.

Performance

Press Brake Machines Performance

Materials & thicknesses

Materials and thicknesses

Material	Typical use	Indicative capacity
Mild steel	General fabrication	Thin sheet to thick plate, machine dependent
Stainless steel	Food, medical, architectural	Clean bends, allow for higher springback
Aluminium	Transport, enclosures	Softer alloys, mind tight inside radii
Brass / copper	Decorative, electrical	Soft, protect finish with careful tooling

Final capacity confirmed against the chosen machine's tonnage and tooling.

Why Axe & Status

The machine is only half the decision

What keeps a machine earning is the support behind it, and that is where we lead. Every installation is backed by our own engineers, from first sample bend to breakdown cover.

Applications engineering

We assess your parts and process before you buy

Installation & commissioning

Delivered, sited and running by our own team

Operator training

Your people confident on the machine from day one

Service & breakdown cover

UK-based engineers and stocked parts

Direct WhatsApp support

A straight line to your engineers when it matters

Customer case study

Kellys Welding

ACCURL MasterLINE 6kW

≈8×

faster than their previous CO2 laser

↓↓

major monthly energy savings

Kellys Welding replaced an ageing CO2 laser with an ACCURL MasterLINE 6kW and reported cutting around eight times faster, alongside a substantial drop in monthly energy costs.

Why Axe & Status

FAQs

What is a press brake?

A press brake is a machine used to bend sheet metal into precise angles and shapes. It applies force with a punch and die to form metal parts.

What is the rule of 8 on a press brake?

The rule of 8 estimates the press brake tonnage needed: Tonnage = (Material thickness × Width × 8) ÷ Die opening.

What are the two main types of press brake?

The two main types are mechanical press brake and hydraulic press brake. Mechanical models are fast, while hydraulic ones offer greater bending force and flexibility.

Is a servo-electric press brake better than hydraulic?

Not always. Servo-electric machines are faster, quieter and more energy-efficient with excellent accuracy. Hydraulic machines give more force for heavy plate. The right choice depends on your material, thickness and volumes.

What is the purpose of a press brake?

To bend, shape or form sheet metal into desired angles or parts. It is widely used in manufacturing, automotive and construction industries.

What are the three types of bending?

The three types are air bending, bottoming and coining. Each varies in force, precision and material control.

Which bending is strongest?

Coining produces the strongest bend as the material is fully pressed into the die, creating a highly accurate and durable bend.

How much does a CNC press brake cost in the UK?

It depends on tonnage, bed length, controls and automation. An entry-level Genius Pro is a very different investment from a robotic tandem cell. Tell us your parts and we will quote the right machine.

What is the 2nd and 3rd form of bend?

2nd form: Bottoming, where the punch presses the sheet into the die partially.
3rd form: Coining, where the sheet is fully compressed into the die for precision.

What is the K factor of bending?

The K factor is a ratio used to calculate bend allowance in sheet metal. It represents the neutral axis location between the inner and outer bend surfaces.

What tonnage and bed length do I need?

That is set by your thickest material and longest part. The rule of 8 gives a quick estimate: (thickness × width × 8) ÷ die opening. We confirm the exact specification for your work.

Do you provide installation and operator training?

Yes. Every machine is delivered, installed and commissioned by our own engineers, with operator training so your team is productive from day one.

Press brake guides

In-depth guides to help you specify with confidence. Publishing at around two a month.

See a press brake in action

Book a demonstration at our Milton Keynes showroom, or talk to us about the right machine for your work.
