The TA Series is designed to combine the use of a versatile manual model with the benefits of CNC cutting, to create a Teach-in machine.
Control
The user friendly Fanuc, Siemens or Fagor controls allow the use of two hand wheels for two axes simultaneous operation.
The massive bed is one-piece manufactured from high quality Meehanite cast iron, and stress relieved for deformation-free year after year.
Bedways are induction hardened to hardness of HRC 52-54, and precision ground to achieve high straightness accuracy.
Designed with one triple ‘V’ and one flat slideway to increase machining dependability and precision.
The tailstock accommodates a MT#6 live centre. Ø105mm quill diameter can hold a workpiece firmly.
Top quality material of spindle
To ensure the spindle accuracy and durability, the spindle is precision machined from high quality chrome molybdenum alloy steel (SCM435-440)
All gears are manufactured from high quality nickel chrome-molybdenum alloy steel in combination with a large module design.
With the increased tooth module and gear width, the gears have a larger contact surface resulting in greater durability and longer lifespan.
The lubrication system employs rigid tubes to eliminate the heat expansion/cold contraction problem and without breakage.
Hydraulic Disk Brake (optional)
Conventional motor brakes create a reactive force to damage the parts in the controller however, with the use of the optional disk brake, gears will not be damaged as the inertia problem is eliminated.
The H4 hydraulic turret holds 4 tools and can be quickly swivelled to cutting position.
The H4-VDI quick change hydraulic turret is a 4-way quick change turret, providing quick indexing.
The V8 hydraulic turret holds 8 tools. It features high indexing accuracy, random tool selection and fast tool change.
Roller Bracket
Equipped on the machine especially for heavy duty large diameter workpieces.
Has a wide range of clamping capacity 300mm – 500mm.
6”(A2-11)
9”(A2-15)
12”(A2-20)
Outer Dia
Ø 15”
Ø 16” / 20”
Ø 24” / 32”
Ø 24” / 32”
Size of the 2nd Chuck
Ø 20”
Ø 24”
Ø 32”
80mm quill diameter with heavy loaded bearing.
Enhance rigidity and stable performance in machining
Ø30 – 300 mm
Ø255 – 455 mm
Model α18/6000i (18.5/22KW) Motor speed [min-1]

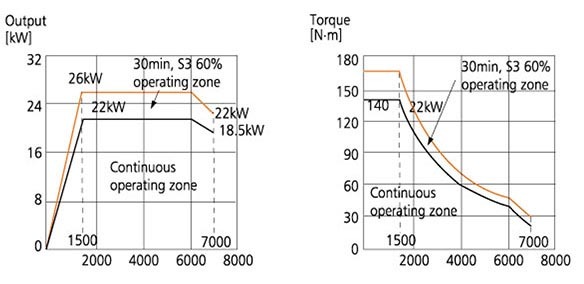

Model α22/7000i (22/26KW) Motor speed [min-1]
| TA Series | TA 30 | ||||
|---|---|---|---|---|---|
| Swing over bed | 770mm (30”) | ||||
| Swing over cross slide | 400mm (19.7”) | ||||
| Centre height | 390mm (15.4”) | ||||
| Width of carriage | 885mm (34.8”) | ||||
| Width of cross slide | 350mm (13.8”) | ||||
| Width of bed | 510mm (20”) | ||||
| Bed way | 3-V way with 1 flat way | ||||
| Distance between centres | 1,300mm(51”) / 2,300mm(90”) / 3,300mm(130”) / 4,300mm(169”) / 5,300mm(209”) | ||||
| Control (4 choices) | Fanuc 0i-TD 8.4″LCD / Fagor 8055-TC 10.4″LCD / Siemens 828D 10.4” LCD | ||||
| Spindle power | Fanuc 18.5/22KW / Fagor 22/33KW / Siemens 22/33KW | ||||
| X-axis servo motor | Fanuc 12Nm(3KW) / Fagor 16.5Nm(5.2KW) / Siemens 16Nm(3.3KW) | ||||
| Z-axis servo motor | Fanuc 22Nm(4KW) / Fagor 27.3Nm(5.7KW) / Siemens 27Nm(4.85KW) | ||||
| Headstock | |||||
| Spindle bore |
| ||||
| Spindle nose |
| ||||
| Spindle speed |
| ||||
| Spindle centre | MT#6 | ||||
| Turret | |||||
| Turret mode | STD: H4-250 hydraulic / OPT: V8-100L hydraulic / V12-100L / H4-250 VDI | ||||
| Tool size | STD: 32mm(1-1/4”) OPT:25mm | ||||
| Tailstock | |||||
| Quill diameter | 105mm quill-MT#6(STD) | ||||
| Quill traverse | 200mm (7.9”) | ||||
| Tailstock centre | MT#6 live centre | ||||
| Body movement | Move by carriage | ||||
| Quill movement | Electric / Manual | ||||
| Feed | |||||
| X-axis rapid traverse | 6m/min Ø40mm *P5 | ||||
| X-axis ballscrew Diameter | Ø40mm *P5 | ||||
| X-axis feed range | 0.1mm/min~3000mm/min | ||||
| X-axis traverse | 500mm | ||||
| Bed length | 3,230mm(127”) / 4,230mm(166”) / 5,230mm(206”) / 6,230mm(245”) / 7,230mm(285”) | ||||
| Z-axis rapid traverse | 6M/min | ||||
Z-axis ballscrew diameter | Ø63mm*P10 | ||||
| Z-axis feed range | 0.1mm/min~3000mm/min | ||||
| Z-axis traverse | 1,000mm / 2,000mm / 3,000mm / 4,000mm / 5,000mm | ||||
| Z-axis transmitting | 1~3M:Directly (Coupling) 4~5M: 1:4 precision gear reducer | ||||
| Standard Accessories | |||||
| Lubrication system carriage | Pressure-relief electric lubricator 25W | ||||
| Lubrication system spindle | 1/4HP Pump | ||||
| Colour | Machine Body / Splash colour to your spec | ||||
| Collant pump | 1/2HP high pressure | ||||
| Hydraulic Pump | 2HP | ||||
| Chip removing system | Rear chip conveyor | ||||
| Guarding | Rear splash guard + front two doors / OPT: Full guarding |
| TA Series | TA 34 | ||||
|---|---|---|---|---|---|
| Swing over bed | 870mm (34”) | ||||
| Swing over cross slide | 500mm(23.6”) | ||||
| Centre height | 440mm (17.3”) | ||||
| Width of carriage | 885mm (34.8”) | ||||
| Width of cross slide | 350mm (13.8”) | ||||
| Width of bed | 510mm (20”) | ||||
| Bed way | 3-V way with 1 flat way | ||||
| Distance between centres | 1,300mm(51”) / 2,300mm(90”) / 3,300mm(130”) / 4,300mm(169”) / 5,300mm(209”) | ||||
| Control (4 choices) | Fanuc 0i-TD 8.4″LCD / Fagor 8055-TC 10.4″LCD / Siemens 828D 10.4” LCD | ||||
| Spindle power | Fanuc 18.5/22KW / Fagor 22/33KW / Siemens 22/33KW | ||||
| X-axis servo motor | Fanuc 12Nm(3KW) / Fagor 16.5Nm(5.2KW) / Siemens 16Nm(3.3KW) | ||||
| Z-axis servo motor | Fanuc 22Nm(4KW) / Fagor 27.3Nm(5.7KW) / Siemens 27Nm(4.85KW) | ||||
| Headstock | |||||
| Spindle bore |
| ||||
| Spindle nose |
| ||||
| Spindle speed |
| ||||
| Spindle centre | MT#6 | ||||
| Turret | |||||
| Turret mode | STD: H4-250 hydraulic / OPT: V8-100L hydraulic / V12-100L / H4-250 VDI | ||||
| Tool size | STD: 32mm(1-1/4”) OPT:25mm | ||||
| Tailstock | |||||
| Quill diameter | 105mm quill-MT#6(STD) | ||||
| Quill traverse | 200mm (7.9”) | ||||
| Tailstock centre | MT#6 live centre | ||||
| Body movement | Move by carriage | ||||
| Quill movement | Electric / Manual | ||||
| Feed | |||||
| X-axis rapid traverse | 6m/min Ø40mm *P5 | ||||
| X-axis ballscrew Diameter | Ø40mm *P5 | ||||
| X-axis feed range | 0.1mm/min~3000mm/min | ||||
| X-axis traverse | 500mm | ||||
| Bed length | 3,230mm(127”) / 4,230mm(166”) / 5,230mm(206”) / 6,230mm(245”) / 7,230mm(285”) | ||||
| Z-axis rapid traverse | 6M/min | ||||
Z-axis ballscrew diameter | Ø63mm*P10 | ||||
| Z-axis feed range | 0.1mm/min~3000mm/min | ||||
| Z-axis traverse | 1,000mm / 2,000mm / 3,000mm / 4,000mm / 5,000mm | ||||
| Z-axis transmitting | 1~3M:Directly (Coupling) 4~5M: 1:4 precision gear reducer | ||||
| Standard Accessories | |||||
| Lubrication system carriage | Pressure-relief electric lubricator 25W | ||||
| Lubrication system spindle | 1/4HP Pump | ||||
| Colour | Machine Body / Splash colour to your spec | ||||
| Collant pump | 1/2HP high pressure | ||||
| Hydraulic Pump | 2HP | ||||
| Chip removing system | Rear chip conveyor | ||||
| Guarding | Rear splash guard + front two doors / OPT: Full guarding |
