Fiber lasers outshine with its fast cutting and energy efficiency abilities when especially its compared to CO² lasers. Easy use, maintenance and service has been achieved by the high technology of CNC Fiber Lasers. Globally recognised efficient components used in DURMA Fiber Lasers add value to your company.
Rack & Pinion and Linear Motor Motion technologies allows us to achieve 3G acceleration. We always strive to serve quality, performance and efficiency to our clients.

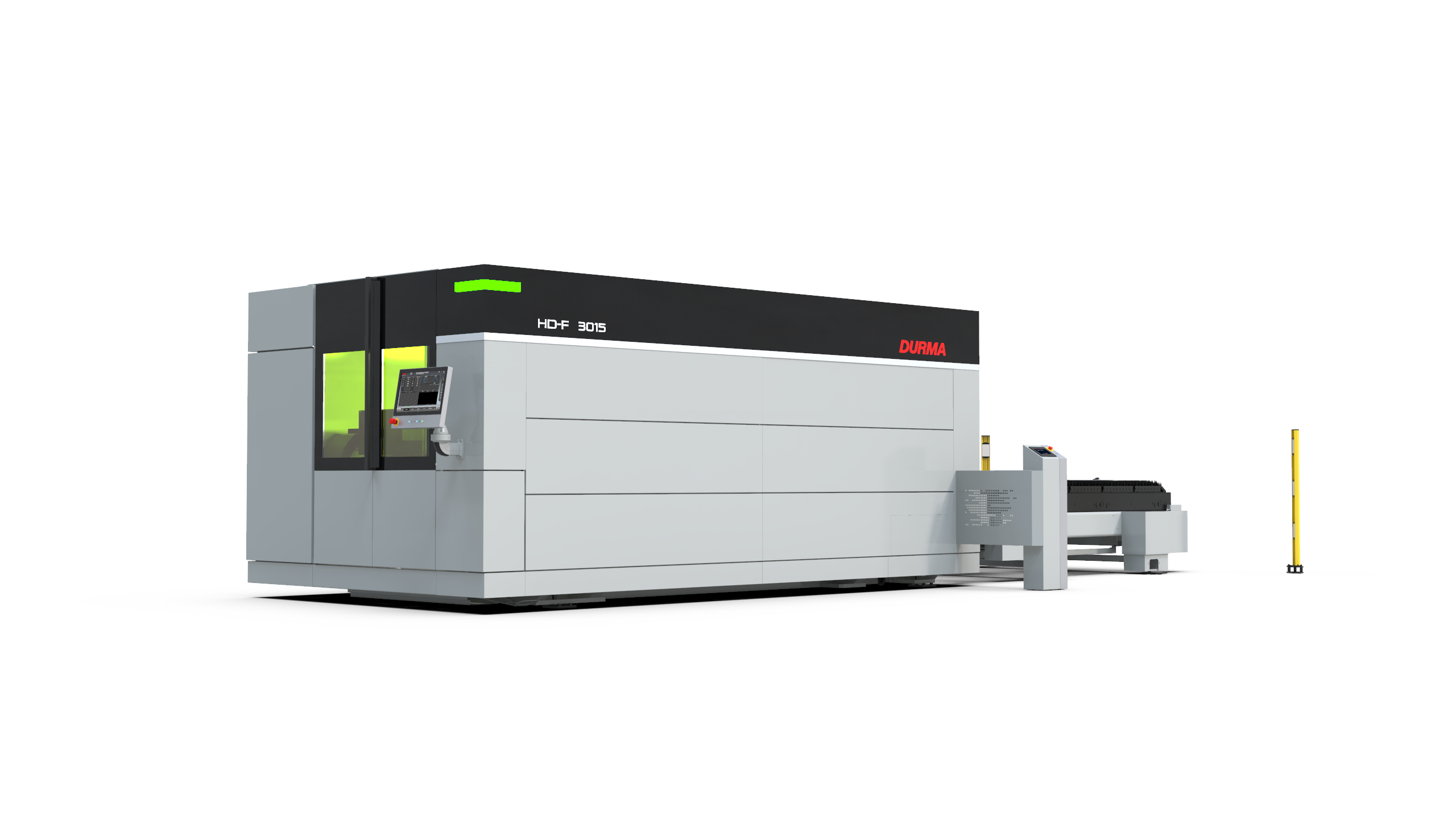

Durma HDFO fiber lasers, stand out with their speed, high quality materials, efficiency and industrial design. The loading and unloading of the material to be cut requires less effort when the shuttle table is not required.
User Friendly
Low Running Costs
Quick Opening Front Door
Easy Access To Cutting Area Compact
Bridge Design
Fast Packing & Delivery

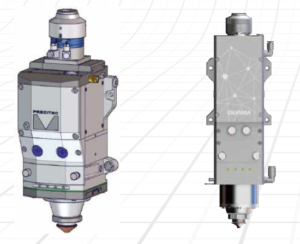

The laser beam generated in the resonator is transmitted to the cutting head via the fiber cable. The cutting head focuses the beam received from the fiber cable onto the processing surface. The type of material to be cut, its thickness, and the
quality of the cut are related to the structure of the optical system. With a single type of cutting head, it offers a complete solution by cutting all thicknesses within its capacity, depending on the laser power. It performs cutting at high-quality standards even in the most challenging cuts and thicker materials.
The valuable optics such as lenses and collimators inside the high-pressure resistant automatic cutting head are protected from particles generated during the cutting process by a low-cost protective glass.The solid and dustproof body ensures a long service life.
Efficient
• Motorized automatic focus position adjustment for faster piercing, piercing thick plates, and cutting
materials of different thicknesses.
• Precise distance measurement and quick response.
• Status monitoring with LED indicators.
Flexible
• Single focus lens for cutting both thin and thick materials
• Design compatible with high Z-axis dynamics
• Automatic focus position adjustment
• Efficient cutting gas flow
User Friendly and Safe
• Thanks to the protective glasses, a dustproof beam path
• LED status indicators
• Collision protection with ceramic part
Servo controlled shuttle table system applied to HD-F 3015 (Standard) and HD-F 4020 (Option) series machines reduces the changeover times by 40%.
The shuttle table is fully automatic and maintenance free on all machines. Hydraulic oil is not used and changing the table is fast, soft and has low energy cost.

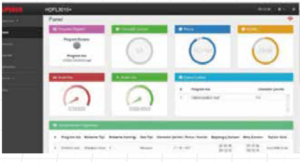

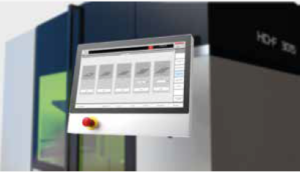

Control Panel
The controller has a Durma operator interface and a complete cutting database for all standard cutting applications. The database includes the cutting parameters for standard materials (steel, stainless steel, aluminum) for common thickness ranges.
Based on these reference values the operator can easily improve the cutting quality for different types of materials.
Durma Cloud
Durma Cloud ensures that machines are accessible and inspectable. It stores machine data and allows for its reuse. Advantages include preventive maintenance, calculation of operating vs. downtime and efficiency, real-time status of your machine, remote monitoring without having to visit the machine, generating reports on cut parts, obtaining historical reports by date range, and reviewing error messages and
causes. An additional optional feature is cloud file transfer, allowing users to send nested cutting files directly to the machine via the internet. The operator only needs to select the program and press start.
CAD/CAM Software
These are CAD/CAM software specifically designed to automate CNC programming for sheet metal laser cutting
machines. They create the most efficient nestings for sheet processing and prepare cutting programs.
- Advanced optimizations
- Fastest cutting and idle motion path calculations to protect the cutting head
- ceramic parts and prevent sheet deformation
- Real font styles: Fonts supported by the operating system can be directly applied to the material being cut.
- Cutting direction can be clockwise or counterclockwise.
- Advanced corner applications provide perfect corners and high-quality cuts.
- Common Cutting: This feature is especially useful for thick plates and reduces the need for piercing during cutting.
