- Structural parts are manufactured from high quality Meehanite cast iron for outstanding rigidity and stability.
- Box way on all 3 axes.
- All castings are stress relieved for long term accuracy and service life
- High precision rigid spindle
- 20 tool carousel with quick tool change
- Fully enclosed splash guarding.
- Choice of control options.
- Optional ZF 2 speed gearbox.
Ballbar Test
Laser Inspected
| Model | Travels | ||||
|---|---|---|---|---|---|
X | Y | Z | ATC | ||
| VMC-600 | BT40, 8000rpm, 7.5Kw | 600 | 480 | 500 | 20 |
| VMC-800 | BT40, 8000rpm, 11Kw | 800 | 510 | 510 | 20 |
| VMC-1000 | BT40, 8000rpm, 11Kw | 1016 | 640 | 640 | 20 |
| VMC-1100 | BT40, 8000rpm, 11Kw | 1100 | 610 | 610 | 20 |
| VMC-1100 | BT40, 6000rpm, 11Kw | 1100 | 610 | 610 | 24arm |
| VMC-1200s | BT40, 8000rpm, 15Kw | 1200 | 660 | 640 | 20 |
| VMC-1200 | BT50, 6000rpm, 15Kw | 1200 | 700 | 760 | 20 |

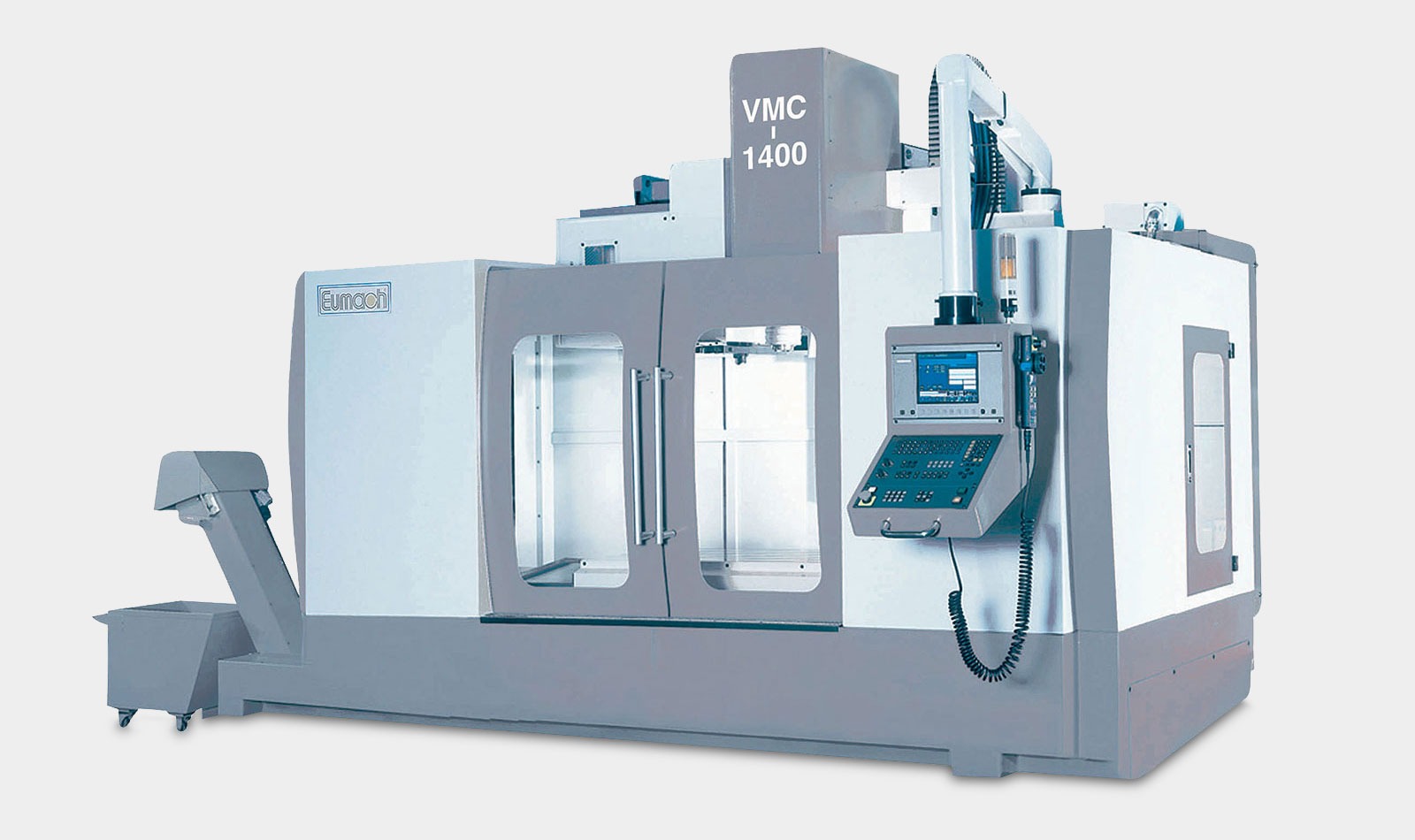

| VMC-1400 | BT50, 6000rpm, 15Kw | 1400 | 700 | 760 | 20 |
| VMC-1600 | BT50, 6000rpm, 18.5Kw | 1600 | 815 | 700 | 20arm |
| VMC-2150 | BT50, 6000rpm, 18.5Kw | 2150 | 900 | 900 | 20 |
| VMC-2600 | BT50, 6000rpm, 18.5Kw | 2600 | 900 | 900 | 20 |
| VMC-3200 | BT50, 6000rpm, 18.5Kw | 3200 | 900 | 900 | 20 |
Specifications subject to change without notice
